Most memory systems are one layer — cosine similarity over a vector store. The community build of Mazemaker on GitHub adds three more: NREM, REM, and Insight, the dream phases that gave Mazemaker its name. The full engine — the one that ran the 100-iteration benchmark loop to R@5 = 0.8426 — is six layers deep: sponge ingestion, atomic fact extraction, embedding with ColBERT + DAE, three-phase dream consolidation, synthesis crystallization, and targeted re-formation. Each layer was added because the prior one saturated.
Layers 1, 3 (partial), and 4 ship in the community engine on GitHub — the public three-phase dream-consolidation system that built Mazemaker's name. Layers 2, 5, and 6 ship in the full engine on the managed pod. Together they form the cognition stack the 100-iteration benchmark loop ran on. None of these layers is “optional”: each was added because the prior one saturated.
Every turn absorbed by a background thread. Session-end fact extraction stores durable decisions and preferences, never raw transcripts. Conflict detection runs at write time.
turn -> sponge worker -> session-end extract -> conflict gate -> store
Community engine. Ships in the open-source build.
Four-stage formation pipeline. Stage A extracts atomic facts from markdown structure. Stage B runs spaCy NER over the raw text. Stage C uses an LLM to extract user-state facts (“user owns X”, “user prefers Y”) per session. Stage S crystallizes cross-source memories during the dream cycle. The corpus the recall pipeline searches over is the output of this layer, not the raw turns.
session -> A:markdown · B:NER · C:LLM · S:synthesis -> atomic-fact corpus
Full engine only. The Stage C user-statement bake is the lever that broke the R@5 = 0.7404 retrieval-tuning ceiling in the 100-iteration loop.
BGE-M3 (1024d, multilingual). On top: ColBERT @ 1.5 late-interaction reranking. On top of that: DAE — Dream-Augmented Embeddings, a second embedding built during NREM consolidation that weights toward graph neighbours. Three channels fused via Reciprocal Rank Fusion.
BGE-M3 1024d -> ColBERT @ 1.5 -> DAE (NREM-weighted) -> RRF fusion
BGE-M3: community. ColBERT @ 1.5 + DAE: full engine (Pro+) only — together they take R@5 from 0.96 to 0.98 on LongMemEval-S. At the rebake-enriched corpus density, the optimal ColBERT weight shifted from 2.5 to 3.0 — era 3 of the benchmark loop.
The original Mazemaker engine. NREM strengthens or prunes connections, runs PPR on GPU when CUDA is available. REM discovers bridges between isolated memories via batched recall. Insight detects communities in the graph and writes cluster-summary memories. Hop-2 reasoning lift: 0.00 → 1.00 R@10. Vector DBs cannot do this.
NREM (PPR + prune) · REM (orphan bridges) · Insight (clusters)
All three phases ship in Community in their lightweight pre-iter00 form. Pro adds ColBERT-driven NREM sampling, DAE-augmented Insight adjacency, and Stage S synthesis on top — layer 5 above this loop.
Episodic → semantic distillation. Stage S runs during the dream cycle, scans recent memories for cross-source patterns, and crystallizes durable semantic memories with explicit provenance edges back to every source. The bottleneck for long-horizon agent memory; vector stores cannot synthesize because they cannot reason over their own graph.
recent episodics -> cross-source pattern -> semantic crystal + provenance
Full engine only.
The operator-side layer. When a deployment hits a known weak question bucket — “the agent keeps missing preferences in the cooking domain” — the targeted re-formation tool diagnoses the specific gold sessions the formation pipeline missed and runs a query-conditional Stage C re-extraction. Per-deployment fine-tuning at API-call cost. No training, no labels, no GPU hours.
weak bucket -> diagnose missed sessions -> query-conditional rebake -> insert
Full engine only. Onboarded through the managed pod — not self-installable.
The 100-iteration benchmark loop is the empirical proof of the layered architecture. For 72 iterations the bottleneck was retrieval — we tuned channel weights, intent boost, ColBERT and DAE multipliers, and saturated at R@5 = 0.7404. Four structurally different stacks landed at the same 4-decimal number. Then the bottleneck moved. The next 9 iterations were entirely about layer 2 (Stage C re-extraction). The next 19 were entirely about layer 3 (rerank weights re-optimized for the rebake-enriched corpus). Each era only became visible once the prior one had finished its work.
That migration is structurally impossible in a vector-DB system. There's only one layer to optimize. When it saturates, the engine saturates. This is the architectural difference between a retrieval plugin and a memory operating system.
The community engine at github.com/itsXactlY/mazemaker ships layers 1, 3-partial (BGE-M3), and 4 (the three dream phases — NREM, REM, Insight — in their lightweight pre-iter00 form, without ColBERT-driven sampling or DAE-augmented adjacency). It runs. It hits R@5 ≈ 0.71 on LongMemEval-oracle. It's MIT-friendly to self-install for hobby use.
The full engine — layers 2, 5, 6 plus the rerank-feedback knob surface tuned by the benchmark loop — ships only through the managed pod onboarding. Not because the code is more complicated. Because the operator-side tooling (the targeted re-formation diagnostic, the corpus-state-aware knob defaults) is the moat. It's not self-installable. It comes through the managed pod.
Six load-bearing implementation pieces, one per architectural layer. The benchmark page shows the per-iteration audit behind each.
FastEmbed ONNX with intfloat/multilingual-e5-large writes 1024d vectors, then links nearby memories into weighted graph edges.
remember -> embed -> SQLite INSERT -> cosine kNN -> connections
GPU matmul when available, numpy fallback otherwise. Multi-channel retrieval fuses semantic, BM25, entity, temporal, PPR, and salience through Reciprocal Rank Fusion.
query -> FastEmbed -> GPU/CPU cosine -> RRF fusion -> ranked memory
mazemaker_think uses BFS or Personalized PageRank. PPR is the ranking-quality channel; removing it costs −0.13 MRR on the audit suite.
source memory -> graph walk -> decay -> activation trace
Contradictory updates fuse or mark stale memories, preserving revision history instead of poisoning recall with duplicates. Without it, stale facts dominate winner @ 1 in 60% of cases.
new fact -> entity + semantic overlap -> supersede -> history

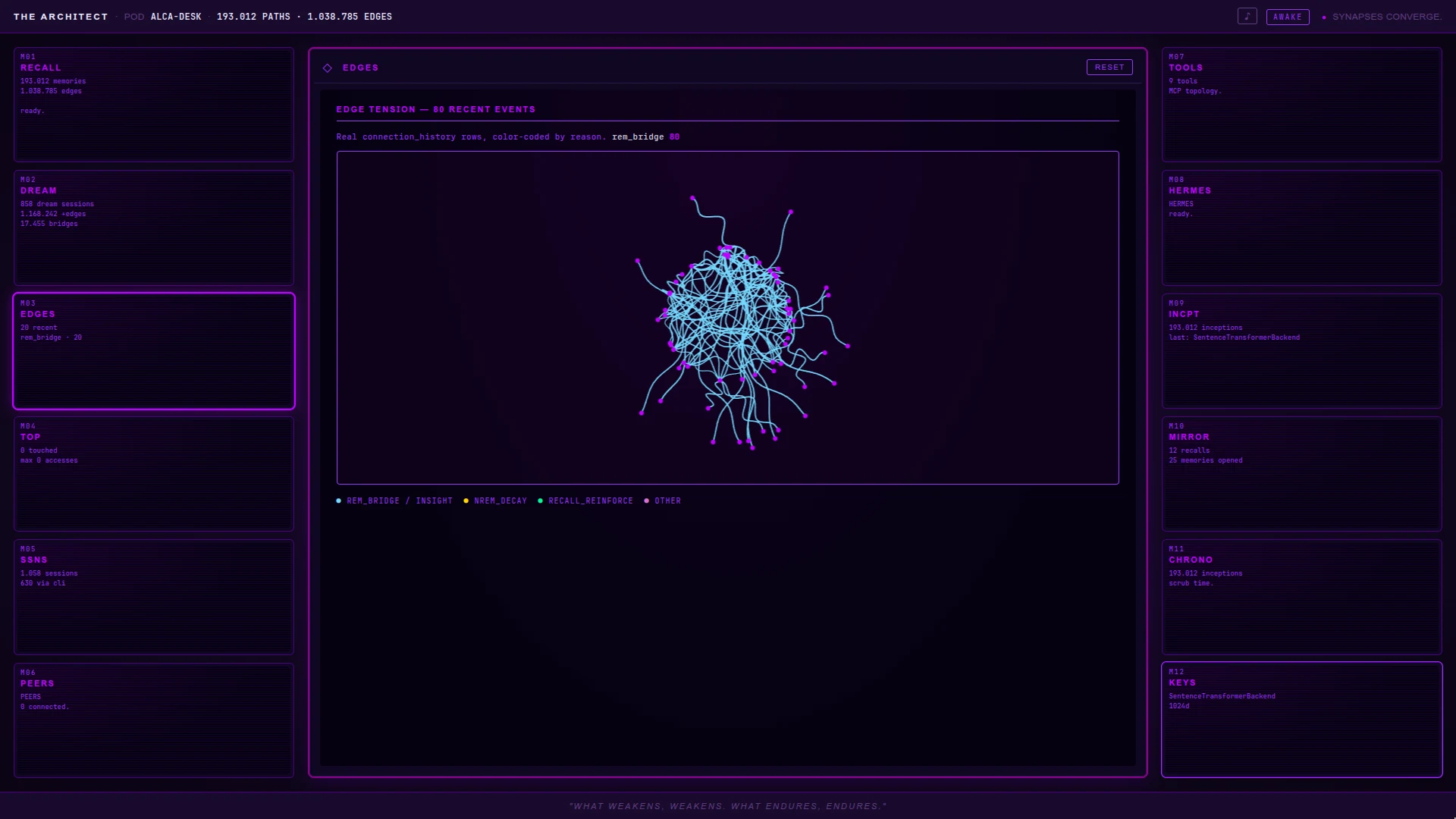

A wall of twelve monitors at architect.mazemaker.dev. Recall, dream replay, edge tension, top-touched, sessions, peers, MCP topology, Hermes chat. Boots only against your own pod; otherwise shows the threshold.
architect.mazemaker.dev -> 127.0.0.1:8765 -> your pod, your data
Pick cuda, mlx, cpu — or BYOK with sentence-transformers, FastEmbed, TF-IDF. Selection lives at mazemaker.dev; the pod adopts it within seconds via JWT compute claim → compute.toml → path-watch restart. Never silently demotes — if you pick cuda and the pod can’t see it, the pod fails loud.
mazemaker.dev pick -> JWT claim -> ~/.mazemaker/compute.toml -> engine
Triggered after 600s idle, after 50 new memories, manually through tooling, or as a standalone daemon. Ships in the community engine. Hop-2 reasoning lift: 0.00 → 1.00 R@10 — the structural gain only autonomous consolidation can produce.
Run spreading activation, strengthen active edges by +0.05, weaken inactive edges, prune dead edges below 0.05.
Find 50 isolated memories, search similar unconnected nodes, create bridge connections at similarity x 0.3.
Detect connected components, identify bridge nodes, materialize dream insights and derived cluster memory.
Triggers fan into the cycle; the cycle splits into NREM, REM, and Insight phases.
%%{init:{'flowchart':{'htmlLabels':true,'curve':'basis','padding':8}}}%%
flowchart LR
subgraph Trigger["TRIGGER"]
direction TB
T1["Idle 600s"]
T2["50 new memories"]
T3["Manual / Cron"]
end
D{{"Dream Cycle"}}
T1 --> D
T2 --> D
T3 --> D
D --> NREM
D --> REM
D --> INSIGHT
subgraph NREM["PHASE 1 · NREM"]
direction TB
N1["Replay 100 recent memories"] --> N2["Spreading activation"]
N2 --> N3{"Connection
active?"}
N3 -->|Yes| N4["Strengthen +0.05"]
N3 -->|No| N5["Weaken −0.01"]
N3 -->|Dead < 0.05| N6["Prune"]
end
subgraph REM["PHASE 2 · REM"]
direction TB
R1["Find 50 isolated memories"] --> R2["Search similar
unconnected nodes"]
R2 --> R3["Create bridge connections"]
R3 --> R4["weight = similarity × 0.3"]
end
subgraph INSIGHT["PHASE 3 · INSIGHT"]
direction TB
I1["BFS connected components"] --> I2["Identify communities"]
I2 --> I3["Find bridge nodes"]
I3 --> I4["Store dream_insights"]
end
classDef trigger fill:#1a140a,stroke:#fbbf24,stroke-width:1.5px,color:#fde68a;
classDef cycle fill:#1a0e2a,stroke:#a78bfa,stroke-width:2.5px,color:#f0a8ff,font-weight:bold;
classDef nrem fill:#0e1428,stroke:#60a5fa,stroke-width:1.5px,color:#dbeafe;
classDef rem fill:#1a0a18,stroke:#f472b6,stroke-width:1.5px,color:#fbcfe8;
classDef insight fill:#0a1a14,stroke:#34d399,stroke-width:1.5px,color:#a7f3d0;
class T1,T2,T3 trigger;
class D cycle;
class N1,N2,N3,N4,N5,N6 nrem;
class R1,R2,R3,R4 rem;
class I1,I2,I3,I4 insight;
One rootless Podman pod, four containers, shared netns. The backend at api.mazemaker.dev issues
a 24-hour JWT and a per-tenant license — and never sees a single byte of memory content.
Everything else runs on your machine, on your disk, in your kernel.
%%{init:{'flowchart':{'htmlLabels':true,'curve':'basis','padding':10}}}%%
flowchart TB
subgraph pod["rootless podman pod · your machine"]
direction TB
W["wonderland
AES-256-GCM vault
vault-key = HKDF(JWT, hw-fingerprint)
derived at runtime, never on disk"]
M["mazemaker-mcp
SQLite WAL · weighted graph · dream
six retrieval modes · MCP / SSE
no outbound network during recall"]
E["embedding-worker
FastEmbed → ST → TF-IDF → hash
1024d · optional managed proxy"]
L["license-client
Ed25519 · 24h JWT · 7d grace
6h heartbeat — anonymous counts"]
W --> M
M --> E
M --> L
end
L -->|"heartbeat & usage meter only"| API["api.mazemaker.dev
issues JWT · counts tool calls
never sees memory content"]
classDef vault fill:#1a0e2a,stroke:#a78bfa,stroke-width:2px,color:#ededf2;
classDef engine fill:#0e1a24,stroke:#5cd6ff,stroke-width:2px,color:#ededf2;
classDef worker fill:#0e1a18,stroke:#10b981,stroke-width:2px,color:#ededf2;
classDef license fill:#241a0e,stroke:#fbbf24,stroke-width:2px,color:#ededf2;
classDef remote fill:#0a0a0d,stroke:#8b5cf6,stroke-width:1.5px,stroke-dasharray:4 3,color:#c4b5fd;
class W vault;
class M engine;
class E worker;
class L license;
class API remote;
AES-256-GCM encrypted vault. The vault key is derived at runtime via HKDF-SHA256(JWT, hardware-fingerprint) — it lives in memory only, never written to disk, and rotates every JWT refresh.
JWT + fingerprint -> HKDF -> AES-256 key -> GCM seal/open
The full retrieval engine: SQLite WAL, weighted graph, dream consolidation, six retrieval modes. Speaks MCP over SSE on the pod-internal loopback. No outbound network calls during recall.
localhost:7791 MCP/SSE · ./data/ SQLite WAL
FastEmbed ONNX as default, sentence-transformers and TF-IDF as fallbacks, plus an optional OpenRouter proxy for the free tier so users without a GPU still get hosted-quality vectors.
CPU FastEmbed -> ST GPU -> TF-IDF -> hash 1024d
Verifies the Ed25519-signed JWT, posts a 6-hour heartbeat with anonymous usage counts, and grants a 7-day offline grace period. The fingerprint binds the license to the machine without any account credential round-trip.
Ed25519 verify -> 24h JWT · 7d grace · 6h heartbeat
The backend ledgers that a tool was called, never what was stored. Memory content stays inside the pod boundary, encrypted at rest by wonderland.
Pure user-namespace Podman with Quadlet .pod and .container units. No Docker daemon, no root, no VM, no SSH — just systemctl --user.
Compute selector adopts your choice from mazemaker.dev within seconds. Strict mode: if the pod can’t see the device you picked, it refuses to start — never silently runs on the wrong layer.
Pair two pods by pasting handshake URLs in the architect. No keys to copy by hand, no IPs to share — the rendezvous is the rest.
The same pod ships to AWS, GCP, Hetzner, a dedicated server, or your local machine. Only the Cloudflare tunnel container changes when you swap providers — the four memory containers do not.
Mazemaker exposes ten MCP tools. The Hermes provider surfaces the core four schemas; dream controls, prune, quota, graph stats, and chronological browse live on the Memory class and the daemon path.
Persist facts, decisions, code notes, labels, and metadata. Auto-embed and auto-connect into the graph.
Core MCPSearch memories by meaning and fuse optional retrieval channels through Reciprocal Rank Fusion.
Core MCPStart from one memory and traverse graph neighborhoods with BFS or PPR ranking.
Core MCPInspect memory count, graph density, connection topology, and strongest associations.
Core MCPRun all phases or target NREM, REM, or Insight manually when using the full Memory class surface.
Memory classInspect sessions, phase outcomes, insights, strengthened edges, bridges, and pruning output.
Memory classTotal memories, edges, embedding fingerprint, compute device. The pulse the architect cockpit reads every five seconds.
Core MCPDrop memories by id, label glob, or age. Protected by an import-grace marker so a fresh install can’t accidentally wipe itself before the dream cycle has settled.
Memory classCalls remaining today and this month, managed-provider budget, tier; matches what the operator console shows on mazemaker.dev.
Walk memories by recency or label glob — no semantic query. The cockpit’s genealogy view and timeline scrub call this; you call it when you want order instead of relevance.
Memory classThe embedding worker tries the backends in order; the first that loads cleanly wins. CUDA / MLX / CPU is a separate selector at mazemaker.dev.
The console at mazemaker.dev
gives you everything: API key rotation, passkey enrollment, usage + dream-cycle status, and a
tool playground. The Architect at
architect.mazemaker.dev
renders twelve monitors over the live graph. Both surfaces reach into the local pod —
neither stores memory content remotely.
%%{init:{'flowchart':{'htmlLabels':true,'curve':'basis','padding':10}}}%%
flowchart LR
user(("you"))
dev["mazemaker.dev
operator console
API keys, quota, billing,
compute selector"]
arch["architect.mazemaker.dev
twelve monitors, live cockpit
recall, dream, peers, sessions"]
user --> dev
user --> arch
subgraph pod["your local pod"]
direction TB
W["wonderland
AES-256-GCM vault"]
M["mazemaker-mcp
SQLite · graph · dream"]
L["license-client
compute.toml"]
W --> M
end
arch -.->|"loopback :8765"| W
dev -.->|"JWT compute claim"| L
L -.->|"path-watch restart"| M
classDef you fill:#0a0a0d,stroke:#a78bfa,stroke-width:2px,color:#f0a8ff;
classDef remote fill:#0a0a0d,stroke:#8b5cf6,stroke-width:1.5px,stroke-dasharray:4 3,color:#c4b5fd;
classDef vault fill:#1a0e2a,stroke:#a78bfa,stroke-width:2px,color:#ededf2;
classDef engine fill:#0e1a24,stroke:#5cd6ff,stroke-width:2px,color:#ededf2;
classDef license fill:#241a0e,stroke:#fbbf24,stroke-width:2px,color:#ededf2;
class user you;
class dev,arch remote;
class W vault;
class M engine;
class L license;
Twelve monitors over the live graph: recall, dream replay, edge tension, top-touched, sessions, peers, MCP topology, Hermes chat. Boots only against your own pod.
Three companion pages cover the parts that the architecture diagram only hints at.
Twelve monitors, the dream replay, the chrono-scrub, the Hermes skill-indexing pipeline. What lives behind architect.mazemaker.dev.
What the install one-liner actually does. Ten stages, one browser handoff, twelve minutes. Every guarantee, every failure mode.
How mazemaker.online, .dev, api., and architect. combine without ever crossing memory data. The privacy guarantee, by schema.
One pod, four containers, ten MCP tools, one curl to install. The pod runs on your machine; only license heartbeats leave it.
